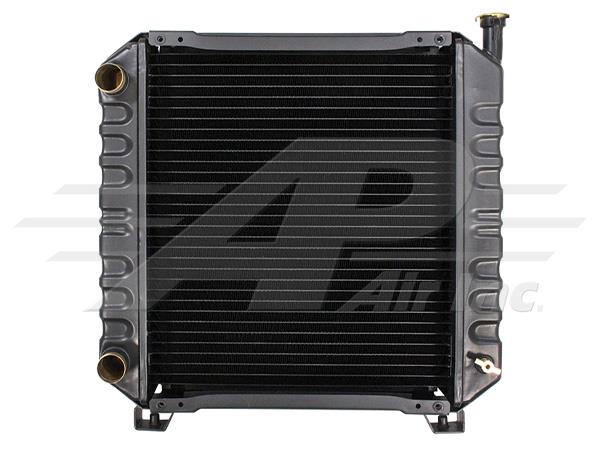

86401463 - Radiator - Case/New Holland

86401463 - Radiator - Case/New Holland

$752.00
$752.00
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
Case IH86402724, 86402725New Holland86401463, 86401465, 86402724, 86402725
Item Information
Fits D35, D40, D45, DX35, DX40, DX45 Case Tractors and
TC35, TC35A, TC35D, TC35DA, TC40, TC40A, TC40D, TC40DA,
TC45, TC45A, TC45D, TC45DA New Holland Tractors
Specifications
CORE HEIGHT 14 3/4"
CORE WIDTH 17"
CORE THICKNESS 2 1/16"
OVERALL HEIGHT 19 7/8"
OVERALL WIDTH 20 1/4"
OUTLET HOSE SIZE 1 3/8"
INLET HOSE SIZE 1 3/8"
FINS PER INCH 11 Serpentine
NUMBER OF ROWS 4
RADIATOR TYPE Copper/Brass

Compatible With

View compatible models and fitment notes (18 models)
Case Tractor D35 , D45 , DX40 , DX45
Case Tractor D40
PIN # HBA0005005 & Above (12/00-12/02) Early Serial Number
Case Tractor DX35
Copper/Brass Class 3 - HBA0005903 and Above Class 3 - HBA015014 and Above Early Serial Number
New Holland Tractor TC35 , TC35D , TC40 , TC40D , TC40DA , TC45 , TC45D
New Holland Tractor TC35A
Serial Number Z7DB02091 and Below
New Holland Tractor TC35DA
Serial Number Z7DB03769 and Below
New Holland Tractor TC40A
Serial Number Z7DB03000 and Below
New Holland Tractor TC45A , TC45DA
Serial Number Z7DB02456 and Below Without Cab
