Expansion Valve, Block

Expansion Valve, Block

$30.21
$30.21
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
Case IH3902334M91, 9966613New Holland3902334M91, 82002793, 9966613White3902334M91, 72275588
Item Information

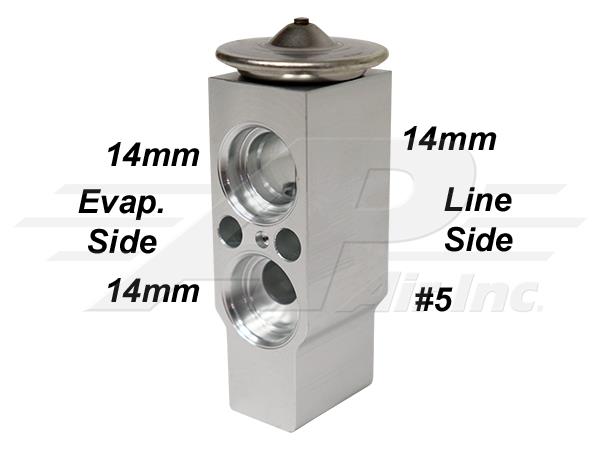

OE Style block valve measures 1.14" wide Can use block valve measuring 1.30" Wide 903-715
Specifications
TYPE O-Ring
LIQUID INLET #5 O-Ring: 441-041
LIQUID OUTLET TO EVAPORATOR 14mm O-Ring: 441-141
INLET FROM EVAPORATOR 14mm O-Ring: 441-141
OUTLET TO COMPRESSOR 14mm O-Ring: 441-141
TONAGE 1 1/2

Compatible With

View compatible models and fitment notes (41 models)
Case Tractor JX100U , JX70U , JX80U , JX90U
Block Measures 1.14" Wide
New Holland Tractor 4635 , 4835 , 5635 , 6635 , 7635 , T4.105F , T4.105V , T4.65 , T4.65V , T4.75F , T4.75V , T4.85F , T4.85V , T4.95F , T4.95V , TL100 , TL100A , TL70 , TL70A , TL80 , TL80A , TL90 , TL90A , TN60DA , TN85DA , TN85SA , TN95DA
Block Measures 1.14" Wide
White Tractor 6085
Serial Number 1566 and Above
White Tractor 6105
Serial Number 1402 and Above
White Tractor 6710 , 6810
All Serial Numbers
White Tractor 8310 , 8410 , 8510 , 8610 , 8710 , 8810
