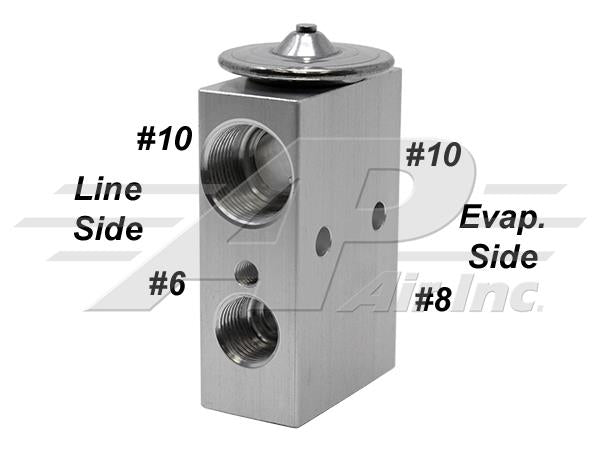

Expansion Valve, Block Type
Expansion Valve, Block Type
OEM part numbers
386535A1
386535A1
Item Information
1/4" Mounting Holes - 1" Apart Center to Center, R12 and R134a Compatible
Can Use OE Red Dot Version - 71R8321
Specifications
| TYPE | O-Ring |
| LIQUID INLET | #6, 3/8" O-Ring |
| LIQUID OUTLET TO EVAPORATOR | #8, 1/2" O-Ring |
| INLET FROM EVAPORATOR | #10, 5/8" O-Ring |
| OUTLET TO COMPRESSOR | #10, 5/8" O-Ring |
| TONAGE | 2 |
Compatible With
New Holland TractorT8.320, T8.350, T8010, T8020, T8030, T8040, T8050, T9010, T9020, T9030, T9040, T9050, T9060, TG210, TG215, TG230, TG245, TG255, TG275, TG285, TG305, TJ275, TJ280, TJ325, TJ330, TJ375, TJ380, TJ425, TJ430, TJ450, TJ480, TJ500, TJ530
New Holland TractorT8.320, T8.350, T8010, T8020, T8030, T8040, T8050, T9010, T9020, T9030, T9040, T9050, T9060, TG210, TG215, TG230, TG245, TG255, TG275, TG285, TG305, TJ275, TJ280, TJ325, TJ330, TJ375, TJ380, TJ425, TJ430, TJ450, TJ480, TJ500, TJ530
