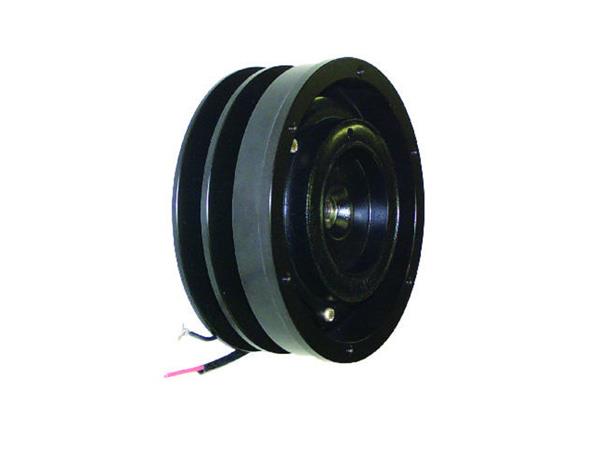

New 10PA15C Clutch With 12V Coil, 5.33" With 2 Grooves
New 10PA15C Clutch With 12V Coil, 5.33" With 2 Grooves
Regular price
$181.29
Regular price
Sale price
$181.29
Unit price
per
Couldn't load pickup availability
OEM part numbers
AZ48479
AZ48479
Item Information
To View Actual Item Just Click on the (Click Here For Larger Image) Under The Picture Box
Without Dust Cover
Without Dust Cover
Specifications
| CLUTCH DIAMETER | 135.5mm, 5.33" |
| DIMENSION B | 8.5mm, 0.334" |
| GAUGE LINE (C) | 25mm, 0.984" |
| COIL VOLTAGE | 12 |
| NUMBER OF GROOVES | 2 |
| GROOVE WIDTH | A2, .480" |
| COMPRESSOR TYPE | 10PA15C |
| COIL PART # | 610-300 |
| BEARING PART # | 440-948 |
Compatible With
John Deere Forage Combine2054, 2056, 2058, 2064, 2066, 2254, 2256, 2258, 2264, 2266
John Deere Forage Combine2054, 2056, 2058, 2064, 2066, 2254, 2256, 2258, 2264, 2266
