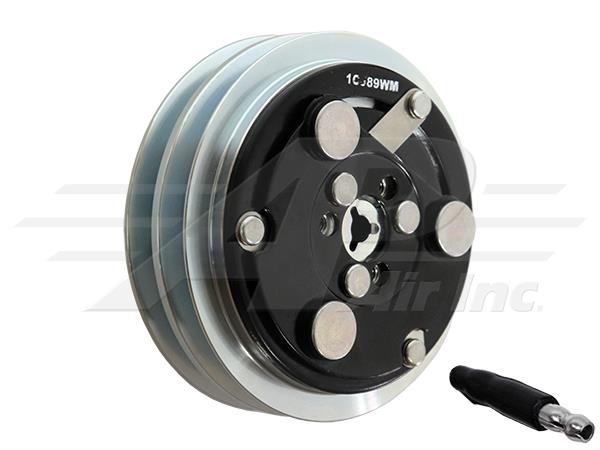

Sanden Clutch SD7H15 - 125mm, 2 Groove, 12V
Sanden Clutch SD7H15 - 125mm, 2 Groove, 12V
Regular price
$167.86
Regular price
Sale price
$167.86
Unit price
per
Couldn't load pickup availability
OEM part numbers
9970336
9970336
Item Information
To View Actual Item Just Click on the (Click Here For Larger Image) Under The Picture Box
Without Dust Cover, With Keyed Shaft
Without Dust Cover, With Keyed Shaft
Specifications
| CLUTCH DIAMETER | 125mm, 4.92" |
| DIMENSION B | 15.5mm, 0.61" |
| GAUGE LINE (C) | 29mm, 1.14" |
| COIL VOLTAGE | 12 |
| NUMBER OF GROOVES | 2 |
| GROOVE WIDTH | A2, .469" |
| COMPRESSOR TYPE | SD708, SD709, SD7H15 |
| GAUGE LINE | 39.55mm |
| COIL PART # | 610-970 |
| BEARING PART # | 440-718 |
Compatible With
New Holland TractorTN55D, TN55S, TN60DA, TN60SA, TN65D, TN65S, TN70DA, TN70NA, TN70SA, TN70VA, TN75D, TN75DA, TN75F, TN75FA, TN75S, TN75SA, TN75VA, TN80F, TN95F, TN95VA
New Holland TractorTN55D, TN55S, TN60DA, TN60SA, TN65D, TN65S, TN70DA, TN70NA, TN70SA, TN70VA, TN75D, TN75DA, TN75F, TN75FA, TN75S, TN75SA, TN75VA, TN80F, TN95F, TN95VA
