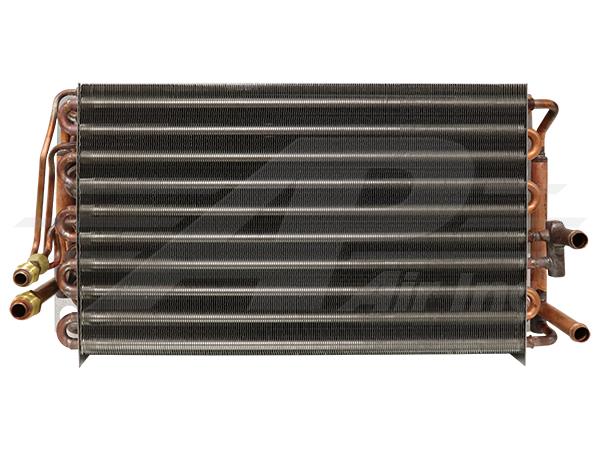

Evaporator with Heater Core

Evaporator with Heater Core

$342.43
$342.43
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
Case IH86990262New Holland86990262
Item Information
Located Under the Seat
Specifications
VALVE TYPE Block
FITTING TYPE O-Ring
CORE LENGTH 16 1/8"
CORE HEIGHT 10 1/2"
CORE WIDTH 4 5/16"
OVERALL LENGTH 20 1/2"
OVERALL HEIGHT 10 1/2"
OVERALL WIDTH 6 1/4"
FITTING INLET #8 Male O-Ring
FITTING OUTLET #10 Male O-Ring

Compatible With

View compatible models and fitment notes (148 models)
Case Sprayer PATRIOT 3230 , PATRIOT 3320 , PATRIOT 3330 , PATRIOT 4420 , PATRIOT 4430 , SPX3230 , SPX3320 , SPX3330 , SPX4420 , SPX4430 , TITAN 3520 , TITAN 4520 , TITAN 4540
Located Under the Seat
Case Sprayer PATRIOT 3240 , PATRIOT 3340 , PATRIOT 4440 , Trident 5550
Case Tractor MAGNUM 180 , MAGNUM 190 , MAGNUM 210 , MAGNUM 215 , MAGNUM 225 , MAGNUM 235 , MAGNUM 245 , MAGNUM 255 , MAGNUM 260 , MAGNUM 275 , MAGNUM 290 , MAGNUM 305 , MAGNUM 335 , MX215 , MX245 , MX275 , MX305 , QUADTRAC 420 , QUADTRAC 450 , QUADTRAC 470 , QUADTRAC 540 , QUADTRAC 550 , QUADTRAC 580 , QUADTRAC 600 , QUADTRAC 620 , ROWTRAC 350 , ROWTRAC 370 , ROWTRAC 400 , ROWTRAC 420 , ROWTRAC 450 , ROWTRAC 500 , STEIGER 280 , STEIGER 330 , STEIGER 335 , STEIGER 350 , STEIGER 370 , STEIGER 380 , STEIGER 385 , STEIGER 400 , STEIGER 420 , STEIGER 430 , STEIGER 435 , STEIGER 450 , STEIGER 470 , STEIGER 480 , STEIGER 485 , STEIGER 500 , STEIGER 530 , STEIGER 535 , STEIGER 540 , STEIGER 550 , STEIGER 580 , STEIGER 600 , STEIGER 620 , STX375 , STX380 , STX425 , STX450 , STX500
Located Under the Seat
Case Tractor MAGNUM 200 , MAGNUM 220 , MAGNUM 250 , MAGNUM 280 , MAGNUM 310 , MAGNUM 310 ROWTRAC , MAGNUM 340 ROWTRAC
Tier 4B CVT and PST
Case Tractor MAGNUM 240 , MAGNUM 380 , MAGNUM 380 ROWTRAC
Tier 4B CVT
Case Tractor MAGNUM 315 , MAGNUM 370
Case Tractor MAGNUM 340
Tier 4A and Tier 4A CVT Tier 4B CVT AND PST
Case Tractor QUADTRAC 370
Tier 4B, Located Under the Seat
Case Tractor STX275 , STX280 , STX325 , STX330 , STX430 , STX480 , STX530
With Automatic Temperature Control
New Holland Tractor T8.275 , T8.300 , T8.330 , T8.350 , T8.360 , T8.390 , T8010 , T8020 , T8030 , T8040 , T8050 , T9.390 , T9.435 , T9.450 , T9.480 , T9.505 , T9.530 , T9.560 , T9.600 , T9.615 , T9.645 , T9.670 , T9.700 , T9010 , T9020 , T9030 , T9040 , T9050 , T9060 , TG215 , TG245 , TG275 , TG305 , TJ375 , TJ380 , TJ425 , TJ430 , TJ450 , TJ480 , TJ500 , TJ530
Located Under the Seat
New Holland Tractor T8.320 , T8.380 , T8.410 , T8.420 , T8.435 , T9.565
New Holland Tractor TJ275 , TJ280 , TJ325 , TJ330
Serial Number RVS003800 and Below Located Under the Seat
