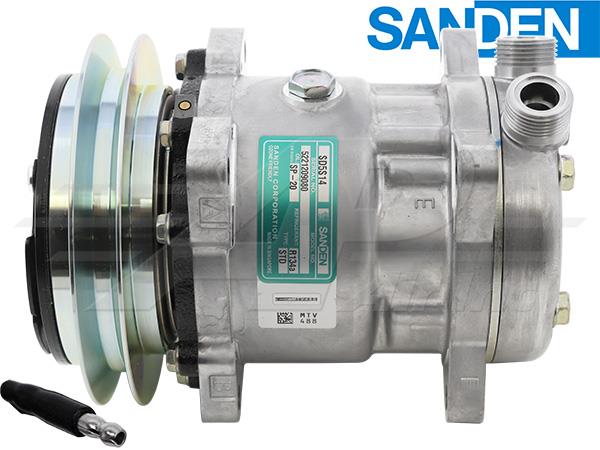

Original Sanden SD5H14, 6" Single Groove, Vertical Tube O-Ring
Original Sanden SD5H14, 6" Single Groove, Vertical Tube O-Ring
Regular price
$369.29
Regular price
Sale price
$369.29
Unit price
per
Couldn't load pickup availability
OEM part numbers
SFD351225T91, 2-1781
SFD351225T91, 2-1781
Item Information
Tube O-Ring Fittings
Without Charge Ports Can use Alternative Sanden Compressor - 509-4043
Without Charge Ports Can use Alternative Sanden Compressor - 509-4043
Additional Information
Single Groove Clutch and Vertical Tube O-Ring Fittings, May Need to Order 451-5152K Service Valve Kit
Single Groove Clutch and Vertical Tube O-Ring Fittings, May Need to Order 451-5152K Service Valve Kit
Specifications
| COMPRESSOR TYPE | SD5H14 |
| HEAD TYPE | C |
| OIL TYPE | Pag 150 |
| CLUTCH DIAMETER | 152mm, 5.98" |
| VOLTAGE | 12 |
| GROOVES | 1 |
| BELT WIDTH | 5/8" |
| COIL POSITION | N/A |
| OIL QUANTITY | 175cc, 5.95oz |
| GAUGE LINE | 33.85mm |
Compatible With
New Holland TractorFW30, FW40, FW60
New Holland TractorFW30, FW40, FW60
