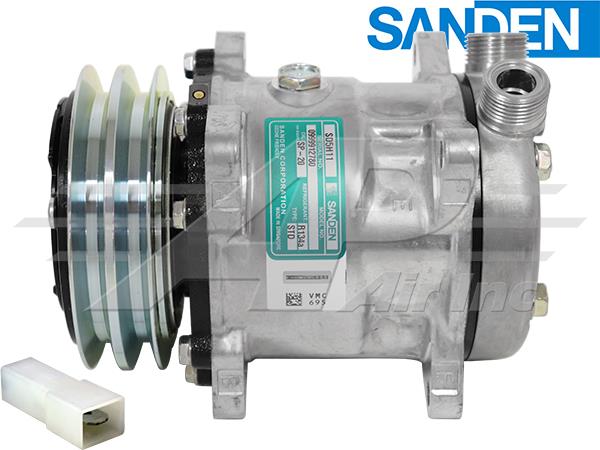

OE Sanden Compressor SD5H11 - 125mm, 2 Groove Clutch 12V

OE Sanden Compressor SD5H11 - 125mm, 2 Groove Clutch 12V

$463.29
$463.29
Sale Sold out
Shipping calculated at checkout.
View full details

Product information & specifications

OEM Part Numbers
Case IH5176185New Holland5176185
Item Information
Can use AP Series Compressor - 509-3983
Specifications
COMPRESSOR TYPE SD5H11
HEAD TYPE C
OIL TYPE R134 Pag Oil
CLUTCH DIAMETER 125mm, 5"
VOLTAGE 12
GROOVES 2
BELT WIDTH 1/2"
COIL POSITION N/A
MOUNTING HOLES 2.885 Between Ears
OIL QUANTITY 4.5 oz.
GAUGE LINE 28.10C, 44.00F

Compatible With

View compatible models and fitment notes (45 models)
Case Tractor JX1060C , JX1070C , JX1070U , JX1075C , JX1080U , JX1090U , JX1100U
Case Tractor JX1060V , JX1070N , JX1070V , JX1075N , JX1075V , JX1095N , JX1095V
SD7H15 Compressor
New Holland Tractor TN55D , TN55S , TN60DA , TN60SA , TN60VA , TN65D , TN65F , TN65S , TN65V , TN70D , TN70DA , TN70F , TN70NA , TN70S , TN70SA , TN70VA , TN75D , TN75DA , TN75F , TN75FA , TN75S , TN75SA , TN75V , TN75VA , TN80F , TN85FA , TN90F , TN95F , TN95FA , TN95NA , TN95VA
