Condenser Relocation Kit

Condenser Relocation Kit

$530.43
$530.43
Sale Sold out
Item Information

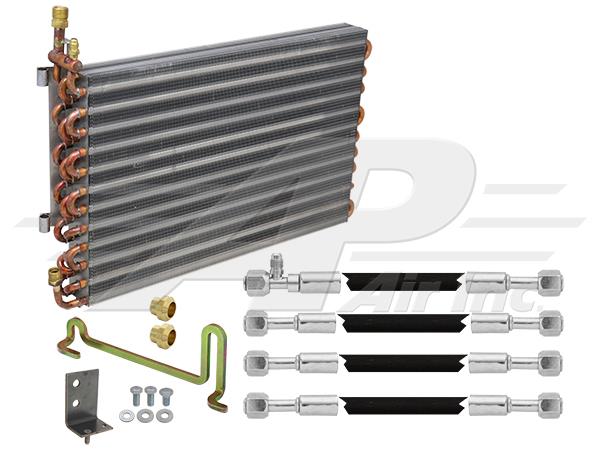

Includes 4 Piece Hose Kit, Which Relocates Receiver Drier and Condenser to 86 Series In Front of Radiator
Must Relocate Original Oil Cooler Below Condenser or Order an 86 Series Oil Cooler 5-0824 with a 995-0824 Bracket Kit
Click On Picture To See Additional View Of Mounting
Additional Information
Relocates Condenser to Front of Radiator
Specifications
CORE HEIGHT 12"
CORE WIDTH 18 1/4"
CORE THICKNESS 2"
OVERALL HEIGHT 15 1/4"
OVERALL WIDTH 22 1/4"
FITTING INLET #8 Male O-Ring w/ Flare Adapters
FITTING OUTLET #6 Male O-Ring w/ Flare Adapters
NUMBER OF ROWS 3
SWITCH PORT 7/16" Male Flare
Compatible With
International Tractors1066, 1466, 1566, 766, 966
