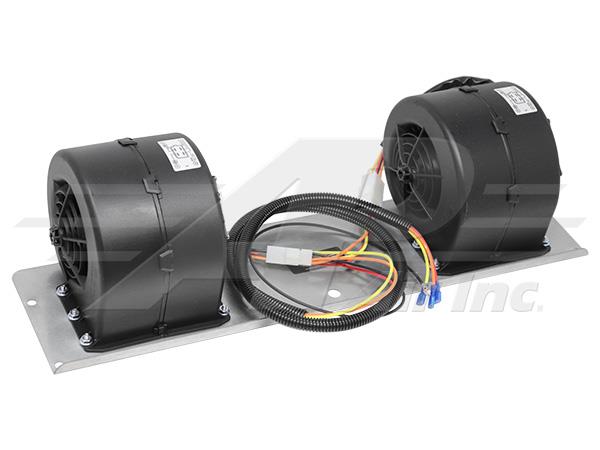

Blower Motor Assembly
Blower Motor Assembly
Regular price
$261.86
Regular price
Sale price
$261.86
Unit price
per
Couldn't load pickup availability
OEM part numbers
1255878C92, 143166C91, 109246C94
1255878C92, 143166C91, 109246C94
Item Information
Uses Original Wire Connection
30 Amp Fuse Recommended
Additional Information
High Efficiency Blower Update Kit For All Serial Numbers, Replaces Original Assembly On Tractors With 4 or 2 Wire Motor, Applications with 2 Wire Motor Must Bypass Resistor and Wire Direct to Switch
High Efficiency Blower Update Kit For All Serial Numbers, Replaces Original Assembly On Tractors With 4 or 2 Wire Motor, Applications with 2 Wire Motor Must Bypass Resistor and Wire Direct to Switch
Specifications
| TYPE | Complete Assembly |
| OVERALL HEIGHT | 5 3/4" |
| OVERALL WIDTH | 5 5/8" |
| VOLTAGE | 12V |
| NUMBER OF SPEEDS | 3 |
| AIR FLOW OUTPUT | 696 CFM |
| MOUNTING BASE LENGTH | 22 7/16" |
| MOUNTING BASE WIDTH | 5 5/8" |
Compatible With
Case Combines1640
Case Combines1640
