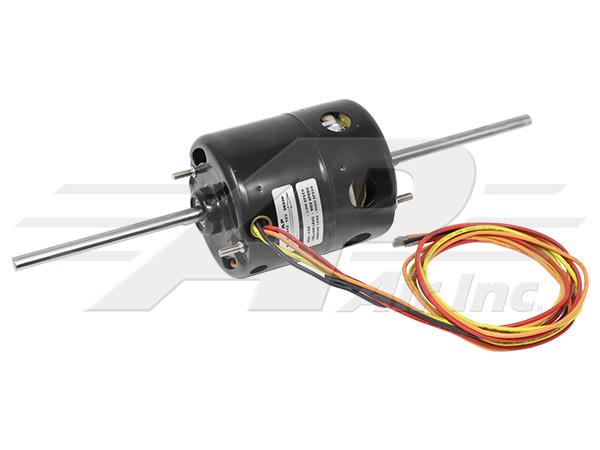

Heavy Duty Blower Motor
Heavy Duty Blower Motor
Regular price
$102.06
Regular price
Sale price
$102.06
Unit price
per
Couldn't load pickup availability
OEM part numbers
AH80194
AH80194
Item Information
Replaces Bushing Style Motor with New HD Bearing Style Motor
With 48" Wire Leads
Wire Identification:
Orange = High Speed, Yellow = Medium Speed, Red = Low Speed, Black = Ground
With 48" Wire Leads
Wire Identification:
Orange = High Speed, Yellow = Medium Speed, Red = Low Speed, Black = Ground
Additional Information
3/8" Double Shaft 4 Wire Ball Bearing Motor
3/8" Double Shaft 4 Wire Ball Bearing Motor
Specifications
| TYPE | Double Shaft, 3 Speed |
| SHAFT SIZE | 3/8" |
| SHAFT LENGTH | 4 1/4" |
| MOTOR DIAMETER | 3 1/2" |
| MOTOR LENGTH | 4 1/8" |
| OVERALL LENGTH | 13 1/2" |
| ROTATION | Reversible |
| NUMBER OF WIRES | 4 |
| VOLTAGE | 12 |
| STUD SPAN | 2 7/8" |
Compatible With
John Deere Forage Combine3300, 4420, 6600, 6602, 7700, 955, 956, 975, 975HY/4, 985, 985HY/4
John Deere Forage Combine3300, 4420, 6600, 6602, 7700, 955, 956, 975, 975HY/4, 985, 985HY/4
