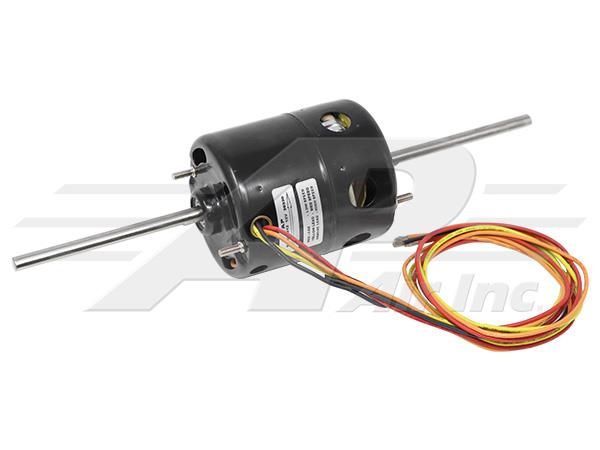

Blower Motor - Heavy Duty EARLY serial number
Blower Motor - Heavy Duty EARLY serial number
Regular price
$102.06
Regular price
Sale price
$102.06
Unit price
per
Couldn't load pickup availability
OEM part numbers
274653, 9807217, 86626709
274653, 9807217, 86626709
Item Information
Replaces Bushing Style Motor with New HD Bearing Style Motor
With 48" Wire Leads
Wire Identification:
Orange = High Speed, Yellow = Medium Speed, Red = Low Speed, Black = Ground
With 48" Wire Leads
Wire Identification:
Orange = High Speed, Yellow = Medium Speed, Red = Low Speed, Black = Ground
Additional Information
3/8" Double Shaft 4 Wire Ball Bearing Motor, Serial Number 566087 and Below
3/8" Double Shaft 4 Wire Ball Bearing Motor, Serial Number 566087 and Below
Specifications
| TYPE | Double Shaft, 3 Speed |
| SHAFT SIZE | 3/8" |
| SHAFT LENGTH | 4 1/4" |
| MOTOR DIAMETER | 3 1/2" |
| MOTOR LENGTH | 4 1/8" |
| OVERALL LENGTH | 13 1/2" |
| ROTATION | Reversible |
| NUMBER OF WIRES | 4 |
| VOLTAGE | 12 |
| STUD SPAN | 2 7/8" |
Compatible With
New Holland CombinesTR89
New Holland CombinesTR89
