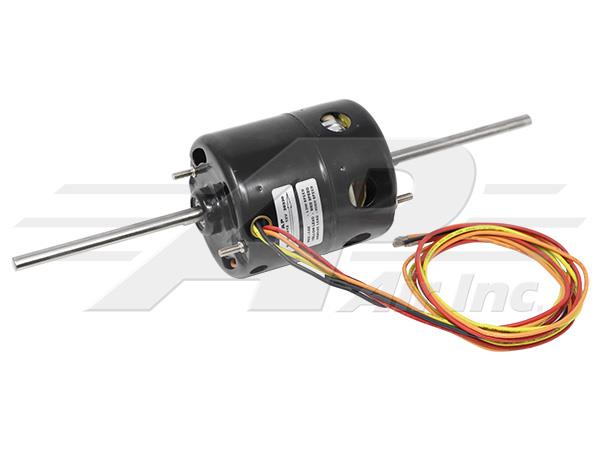

Heavy Duty Blower Motor EARLY serial number
Heavy Duty Blower Motor EARLY serial number
OEM part numbers
AH80194
AH80194
Item Information
Replaces Bushing Style Motor with New HD Bearing Style Motor
With 48" Wire Leads
Wire Identification:
Orange = High Speed, Yellow = Medium Speed, Red = Low Speed, Black = Ground
With 48" Wire Leads
Wire Identification:
Orange = High Speed, Yellow = Medium Speed, Red = Low Speed, Black = Ground
Additional Information
Serial Number 490000 and Below, 3/8" Double Shaft 4 Wire Ball Bearing Motor
Serial Number 490000 and Below, 3/8" Double Shaft 4 Wire Ball Bearing Motor
Specifications
| TYPE | Double Shaft, 3 Speed |
| SHAFT SIZE | 3/8" |
| SHAFT LENGTH | 4 1/4" |
| MOTOR DIAMETER | 3 1/2" |
| MOTOR LENGTH | 4 1/8" |
| OVERALL LENGTH | 13 1/2" |
| ROTATION | Reversible |
| NUMBER OF WIRES | 4 |
| VOLTAGE | 12 |
| STUD SPAN | 2 7/8" |
Compatible With
John Deere Swathers2280
John Deere Swathers2280
