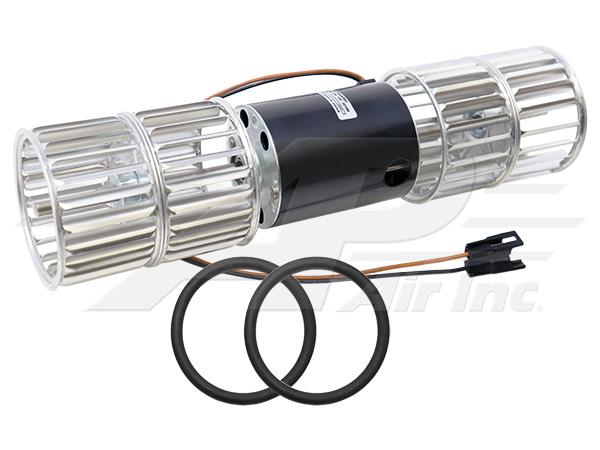

Heavy Duty Motor Repair Kit - HD Bearing Style with Steel Wheels, OE Wire Connectors and Mounting O-Rings LATE serial number
Heavy Duty Motor Repair Kit - HD Bearing Style with Steel Wheels, OE Wire Connectors and Mounting O-Rings LATE serial number
Regular price
$141.00
Regular price
Sale price
$141.00
Unit price
per
Couldn't load pickup availability
OEM part numbers
RE10998, AR82005
RE10998, AR82005
Item Information
Additional Information
Late Series - Requires 1 Per Application Cab Serial Number 167884 and Above with Single Blower Motor, 3/8" Double Shaft 2 Wire Motor with Steel Wheels
Late Series - Requires 1 Per Application Cab Serial Number 167884 and Above with Single Blower Motor, 3/8" Double Shaft 2 Wire Motor with Steel Wheels
Specifications
| TYPE | Double Shaft, Single Speed |
| SHAFT SIZE | 3/8" |
| SHAFT LENGTH | 5" |
| MOTOR DIAMETER | 3 1/4" |
| MOTOR LENGTH | 4 1/8" |
| OVERALL LENGTH | 14 3/4" |
| ROTATION | Reversible |
| NUMBER OF WIRES | 2 |
| VOLTAGE | 12 |
| STUD SPAN | 2 1/2" |
Compatible With
John Deere Tractors8430 4WD, 8630
John Deere Tractors8430 4WD, 8630
