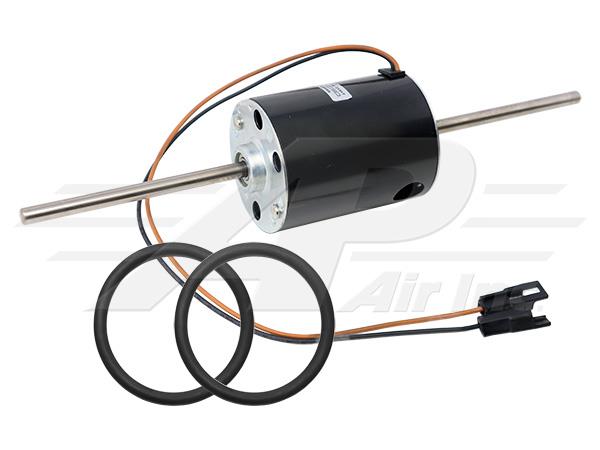

Heavy Duty Motor - HD Bearing Style with OE Wire Connectors and Mounting O-Rings EARLY serial number
Heavy Duty Motor - HD Bearing Style with OE Wire Connectors and Mounting O-Rings EARLY serial number
Regular price
$100.71
Regular price
Sale price
$100.71
Unit price
per
Couldn't load pickup availability
OEM part numbers
AR82005
AR82005
Item Information
With OE Wire Connectors and Mounting O-Rings
Replaces Bushing Style Motor With New HD Bearing Style Motor Can Use Standard Version - BM20052
Replaces Bushing Style Motor With New HD Bearing Style Motor Can Use Standard Version - BM20052
Additional Information
Early Series - Requires 1 Per Application Serial Number 500462 and Below With SG2 Cab, 3/8" Double Shaft 2 Wire Motor
Early Series - Requires 1 Per Application Serial Number 500462 and Below With SG2 Cab, 3/8" Double Shaft 2 Wire Motor
Specifications
| TYPE | Double Shaft, Single Speed |
| SHAFT SIZE | 3/8" |
| SHAFT LENGTH | 5" |
| MOTOR DIAMETER | 3 1/4" |
| MOTOR LENGTH | 4 1/8" |
| OVERALL LENGTH | 14 3/4" |
| ROTATION | Reversible |
| NUMBER OF WIRES | 2 |
| VOLTAGE | 12 |
| STUD SPAN | 2 1/2" |
Compatible With
John Deere Tractors1640, 2040, 2040S
John Deere Tractors1640, 2040, 2040S
