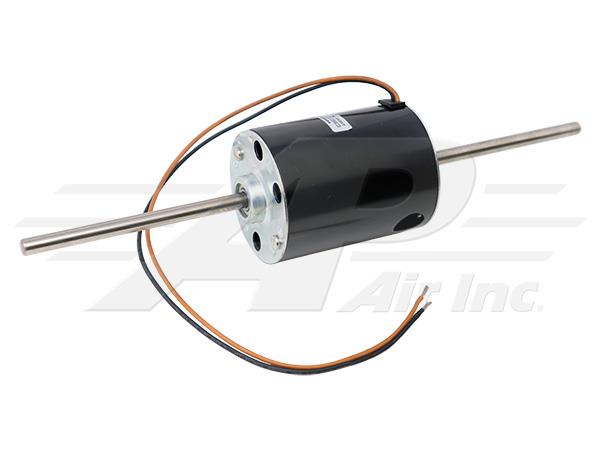

Heavy Duty Blower Motor LATE serial number
Heavy Duty Blower Motor LATE serial number
Regular price
$94.00
Regular price
Sale price
$94.00
Unit price
per
Couldn't load pickup availability
OEM part numbers
RE25160, AR82005, RE251028
RE25160, AR82005, RE251028
Item Information
Replaces Bushing Style Motor With New HD Bearing Style Motor
Can Use Heavy Duty Blower Motor with OE Connectors - BM20052HD
Additional Information
Late Series - Requires 1 Per Application Cab Serial Number 167884 and Above with Single Blower Motor, 3/8" Double Shaft 2 Wire Motor
Late Series - Requires 1 Per Application Cab Serial Number 167884 and Above with Single Blower Motor, 3/8" Double Shaft 2 Wire Motor
Specifications
| TYPE | Double Shaft, Single Speed |
| SHAFT SIZE | 3/8" |
| SHAFT LENGTH | 5" |
| MOTOR DIAMETER | 3 1/4" |
| MOTOR LENGTH | 4 1/8" |
| OVERALL LENGTH | 14 3/4" |
| ROTATION | Reversible |
| NUMBER OF WIRES | 2 |
| VOLTAGE | 12 |
| STUD SPAN | 2 1/2" |
Compatible With
John Deere Tractors4030, 8430 4WD, 8630
John Deere Tractors4030, 8430 4WD, 8630
