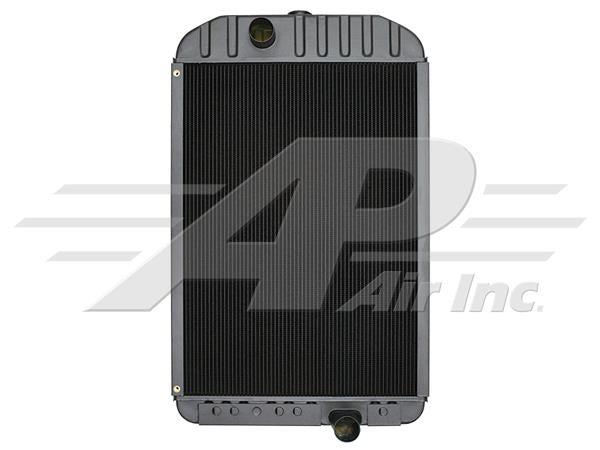

Radiator with 5 3/8" Side Channel Depth EARLY serial number

Radiator with 5 3/8" Side Channel Depth EARLY serial number

OEM part numbers
AH169363, AH144719
Item Information
Fits 9400, 9410, 9500, 9500SH, 9510, 9510SH, 9550, 9600, 9610, 9650CTS John Deere Combines
Side Channel Depth is 5 3/8"
For Radiator with Side Channel Depth of 4 7/8" Order AR5613
For Radiator Cap Order 21-29
Additional Information
Serial Number 695300 and Below, CTS Serial Number 695400 and Below
Specifications
CORE HEIGHT 33 3/4"
CORE WIDTH 24 3/4"
CORE THICKNESS 4"
OVERALL HEIGHT 42" - Does Not Include Filler Neck
OVERALL WIDTH 26"
SIDE CHANNEL DEPTH 5 1/2"
OUTLET HOSE SIZE 2 1/2"
INLET HOSE SIZE 2 1/2"
FILLER NECK HEIGHT 3/4"
FINS PER INCH 5
NUMBER OF ROWS 4 Inline
Compatible With
John Deere Forage Combine9650
