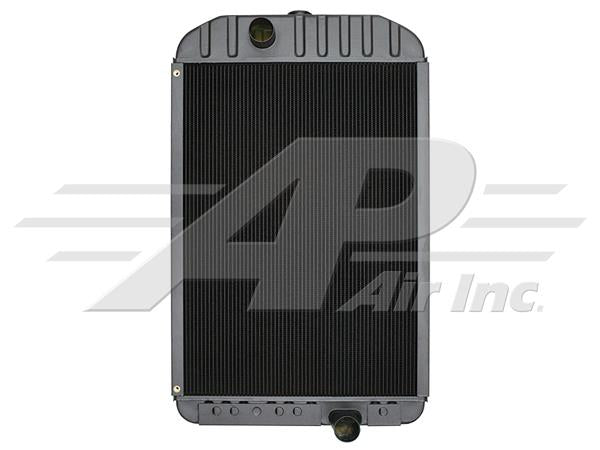

Radiator with 5 3/8" Side Channel Depth LATE serial number

Radiator with 5 3/8" Side Channel Depth LATE serial number

$1,739.00
$1,739.00
Sale Sold out
OEM part numbers
AH169363, AH144719
Item Information
Fits 9400, 9410, 9500, 9500SH, 9510, 9510SH, 9550, 9600, 9610, 9650CTS John Deere Combines
Side Channel Depth is 5 3/8"
For Radiator with Side Channel Depth of 4 7/8" Order AR5613
For Radiator Cap Order 21-29
Additional Information
Serial Number 640301 and Above With Hi and Lo Power Engines
Specifications
CORE HEIGHT 33 3/4"
CORE WIDTH 24 3/4"
CORE THICKNESS 4"
OVERALL HEIGHT 42" - Does Not Include Filler Neck
OVERALL WIDTH 26"
SIDE CHANNEL DEPTH 5 1/2"
OUTLET HOSE SIZE 2 1/2"
INLET HOSE SIZE 2 1/2"
FILLER NECK HEIGHT 3/4"
FINS PER INCH 5
NUMBER OF ROWS 4 Inline
Compatible With
John Deere Forage Combine9600
