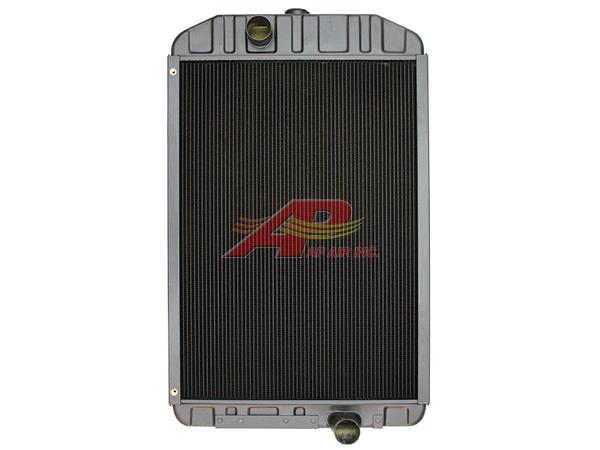

Radiator with 4 7/8" Side Channel Depth

Radiator with 4 7/8" Side Channel Depth

$1,544.29
$1,544.29
Sale Sold out
OEM part numbers
AH169362, AH128257
Item Information
Fits John Deere 9400, 9410, 9450, 9500, 9500SH, 9510, 9510SH, 9550, 9550SH, 9600, 9650CTS, 9976 Combines
Side Channel Depth is 4 7/8"
For Radiator with Side Channel Depth of 5 1/2" Order AR5619
For Radiator Cap Order 21-29
Additional Information
Standard Cooling
Specifications
CORE HEIGHT 34"
CORE WIDTH 24 3/4"
CORE THICKNESS 3 3/8"
OVERALL HEIGHT 41 7/8" - Does Not Include Filler Neck
OVERALL WIDTH 26 1/8"
SIDE CHANNEL DEPTH 4 7/8"
OUTLET HOSE SIZE 2 1/2"
INLET HOSE SIZE 2 1/2"
FILLER NECK HEIGHT 3/4"
FINS PER INCH 5
NUMBER OF ROWS 4 Inline
Compatible With
John Deere Forage Combine9510, 9510SH
