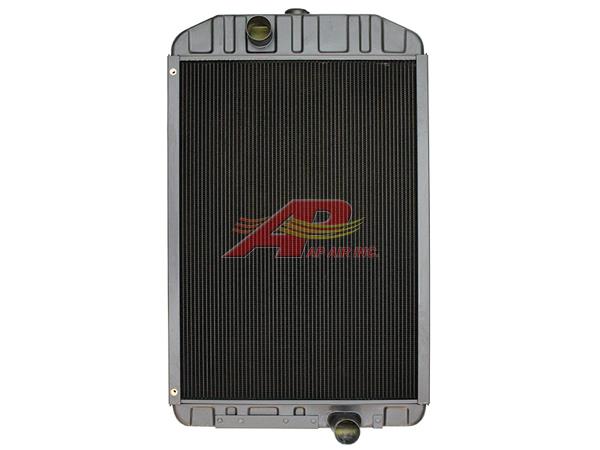

Radiator with 4 7/8" Side Channel Depth EARLY serial number

Radiator with 4 7/8" Side Channel Depth EARLY serial number

OEM part numbers
AH169362, AH128257
Item Information
Fits John Deere 9400, 9410, 9450, 9500, 9500SH, 9510, 9510SH, 9550, 9550SH, 9600, 9650CTS, 9976 Combines
Side Channel Depth is 4 7/8"
For Radiator with Side Channel Depth of 5 1/2" Order AR5619
For Radiator Cap Order 21-29
Additional Information
Serial Number 655419 and Below
Specifications
CORE HEIGHT 34"
CORE WIDTH 24 3/4"
CORE THICKNESS 3 3/8"
OVERALL HEIGHT 41 7/8" - Does Not Include Filler Neck
OVERALL WIDTH 26 1/8"
SIDE CHANNEL DEPTH 4 7/8"
OUTLET HOSE SIZE 2 1/2"
INLET HOSE SIZE 2 1/2"
FILLER NECK HEIGHT 3/4"
FINS PER INCH 5
NUMBER OF ROWS 4 Inline
Compatible With
John Deere Forage CombineCTS
