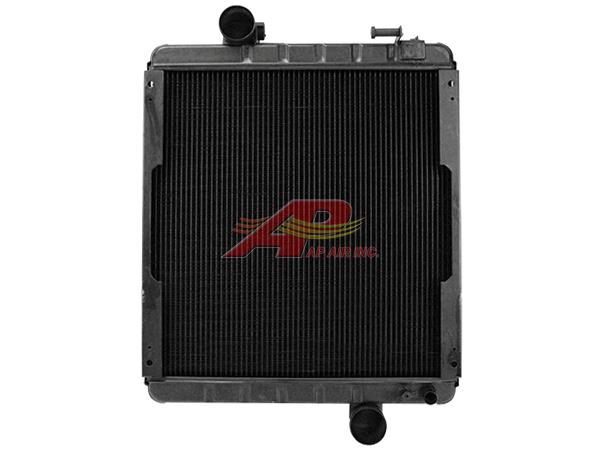

Copper/Brass Radiator

Copper/Brass Radiator

$785.57
$785.57
Sale Sold out
OEM part numbers
AL115002, AL110865, AL115731, AL78001
Item Information
Does Not Include Surge Tank For Early Serial Number Tractors That Have Radiator without 7/8" Port on Tank, Must Order OE Radiator Hoses L111090 and L111275 or Plug the 7/8 Bypass Port Can use Plastic/Aluminum - AR5627 For Radiator Foam Seal Kit RF5585
Additional Information
For Radiator Foam Seal Kit RF5585
Specifications
CORE HEIGHT 20 1/4"
CORE WIDTH 20"
CORE THICKNESS 2 1/2"
OVERALL HEIGHT 23 7/8"
OVERALL WIDTH 20 3/4"
OUTLET HOSE SIZE 2 3/8"
INLET HOSE SIZE 2 3/8"
FINS PER INCH 8
NUMBER OF ROWS 4
RADIATOR TYPE Copper/Brass Radiator - Replaces OE Plastic Tank/Aluminum Radiator
Compatible With
John Deere Tractors6100
