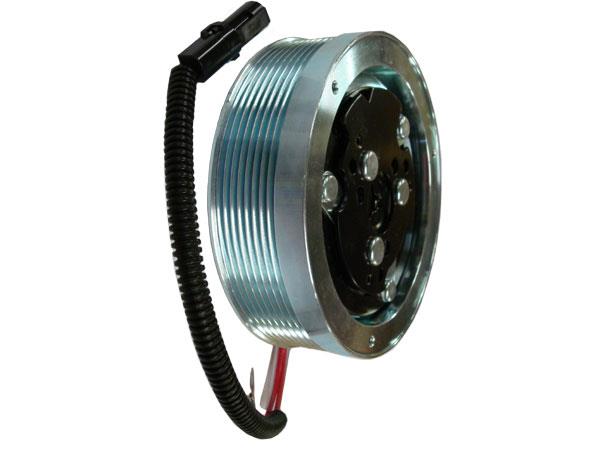

Sanden Clutch - 152mm, 8 Groove, 12V
Sanden Clutch - 152mm, 8 Groove, 12V
Regular price
$167.86
Regular price
Sale price
$167.86
Unit price
per
Couldn't load pickup availability
OEM part numbers
403585A1
403585A1
Item Information
Fits 509-603 Compressor
Keyed Shaft
Keyed Shaft
Specifications
| COMPRESSOR TYPE | SD7H15 |
| CLUTCH DIAMETER | 152 mm, 5.98" |
| COIL VOLTAGE | 12 |
| NUMBER OF GROOVES | 8 |
| GROOVE WIDTH | PV8 |
| COIL NUMBER | 610-985 |
| BEARING NUMBER | 440-718 |
Compatible With
New Holland TractorT8.275, T8.300, T8.320, T8.330, T8.350, T8.360, T8.390, T8010, T8020, T8030, T8040, T8050, T9.390, T9.450, T9.505, T9.560, T9.670, T9.700, T9030, T9040, T9050, T9060, TG210, TG215, TG230, TG245, TG255, TG275, TG285, TG305, TJ375, TJ380, TJ425, TJ430, TJ450, TJ480, TJ500, TJ530
New Holland TractorT8.275, T8.300, T8.320, T8.330, T8.350, T8.360, T8.390, T8010, T8020, T8030, T8040, T8050, T9.390, T9.450, T9.505, T9.560, T9.670, T9.700, T9030, T9040, T9050, T9060, TG210, TG215, TG230, TG245, TG255, TG275, TG285, TG305, TJ375, TJ380, TJ425, TJ430, TJ450, TJ480, TJ500, TJ530
