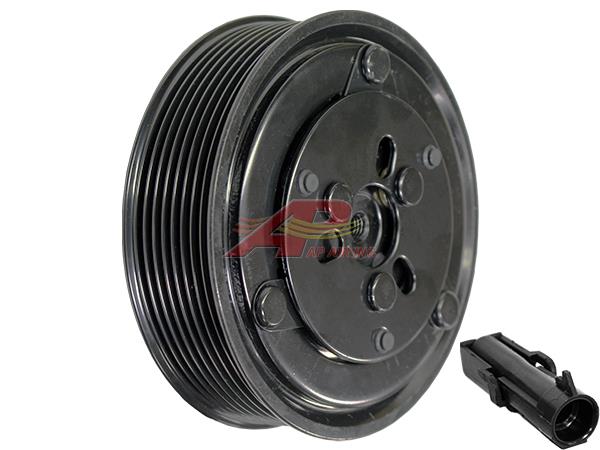

HD Denso Clutch - 124.5mm, 8 Grooves, 12V
HD Denso Clutch - 124.5mm, 8 Grooves, 12V
Regular price
$127.57
Regular price
Sale price
$127.57
Unit price
per
Couldn't load pickup availability
OEM part numbers
AL78494
AL78494
Item Information
Can use Standard Duty Clutch with Rubber Hub - 600-3025
Specifications
| COMPRESSOR TYPE | 10PA15C |
| CLUTCH DIAMETER | 124.5mm, 4.901" |
| DIMENSION B | 17.50mm, .690" |
| GAUGE LINE (C) | N/A |
| COIL VOLTAGE | 12 |
| NUMBER OF GROOVES | 8 |
| GROOVE WIDTH | Serpentine |
| COIL NUMBER | 610-306 |
| BEARING NUMBER | 440-948 |
| HUB NUMBER | 610-352 |
Compatible With
John Deere Tractors5080R, 5090R, 5100R, 5620, 5720, 5820, 6010, 6095B, 6100, 6110, 6110B, 6120, 6130, 6135B, 6200, 6200L, 6210, 6220, 6230, 6300, 6300L, 6310, 6310S, 6320, 6320L, 6330, 6400, 6400L, 6405, 6410, 6410S, 6420, 6420L, 6420S, 6430, 6500, 6500L, 6506, 6510, 6510S, 6520, 6520L, 6530, 6600, 6605, 6610, 6620, 6630, 6800, 6810, 6820, 6830, 6900, 6910, 6910S, 6920, 6920S, 6930, 7130, 7130 PREMIUM, 7220, 7230, 7230 PREMIUM, 7320, 7330, 7330 PREMIUM, 7420, 7425, 7430, 7505, 7520 MFWD, 7525, 7530, 7530 PREMIUM, SE6010, SE6100, SE6110, SE6200, SE6210, SE6300, SE6310, SE6400, SE6410
