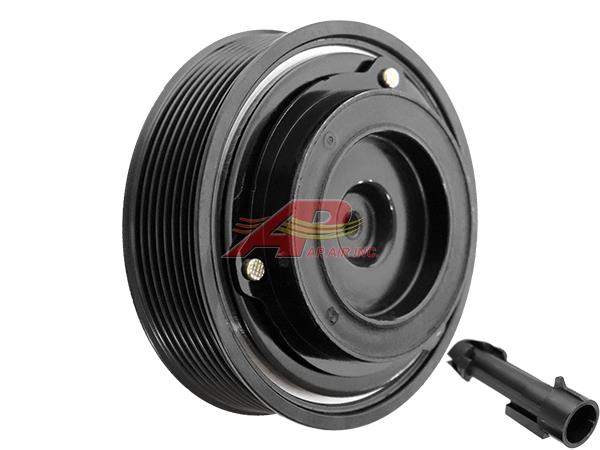

Denso Clutch - 124.5mm, 8 Grooves, 12V
Denso Clutch - 124.5mm, 8 Grooves, 12V
Regular price
$127.57
Regular price
Sale price
$127.57
Unit price
per
Couldn't load pickup availability
OEM part numbers
AL78494
AL78494
Item Information
Can use Heavy Duty Clutch with Spring Leaf Hub - 600-3025HD
Without Dust Cover
Without Dust Cover
Specifications
| COMPRESSOR TYPE | 10PA15C |
| CLUTCH DIAMETER | 124.5mm, 4.901" |
| DIMENSION B | 17.50mm, .690" |
| GAUGE LINE (C) | N/A |
| COIL VOLTAGE | 12 |
| NUMBER OF GROOVES | 8 |
| GROOVE WIDTH | PV8 |
| COIL NUMBER | 610-306 |
| BEARING NUMBER | 440-948 |
Compatible With
John Deere Tractors5080R, 5090R, 5100R, 5620, 5720, 5820, 6010, 6095B, 6100, 6110, 6110B, 6120, 6130, 6135B, 6200, 6200L, 6210, 6220, 6230, 6300, 6300L, 6310, 6310S, 6320, 6320L, 6330, 6400, 6400L, 6405, 6410, 6410S, 6420, 6420L, 6420S, 6430, 6500, 6500L, 6506, 6510, 6510S, 6520, 6520L, 6530, 6600, 6605, 6610, 6620, 6630, 6800, 6810, 6820, 6830, 6900, 6910, 6910S, 6920, 6920S, 6930, 7130, 7130 PREMIUM, 7220, 7230, 7230 PREMIUM, 7320, 7330, 7330 PREMIUM, 7420, 7425, 7430, 7505, 7520 MFWD, 7525, 7530, 7530 PREMIUM, SE6010, SE6100, SE6110, SE6200, SE6210, SE6300, SE6310, SE6400, SE6410
John Deere Tractors5080R, 5090R, 5100R, 5620, 5720, 5820, 6010, 6095B, 6100, 6110, 6110B, 6120, 6130, 6135B, 6200, 6200L, 6210, 6220, 6230, 6300, 6300L, 6310, 6310S, 6320, 6320L, 6330, 6400, 6400L, 6405, 6410, 6410S, 6420, 6420L, 6420S, 6430, 6500, 6500L, 6506, 6510, 6510S, 6520, 6520L, 6530, 6600, 6605, 6610, 6620, 6630, 6800, 6810, 6820, 6830, 6900, 6910, 6910S, 6920, 6920S, 6930, 7130, 7130 PREMIUM, 7220, 7230, 7230 PREMIUM, 7320, 7330, 7330 PREMIUM, 7420, 7425, 7430, 7505, 7520 MFWD, 7525, 7530, 7530 PREMIUM, SE6010, SE6100, SE6110, SE6200, SE6210, SE6300, SE6310, SE6400, SE6410
