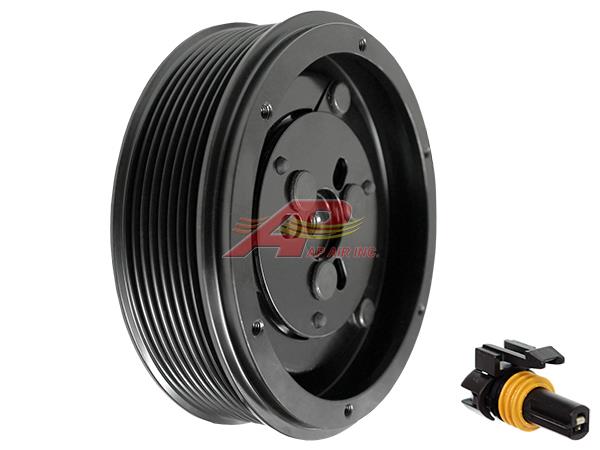

HD Complete Clutch Kit with Hub, Pulley, Coil, and Dust Cover - Spring Leaf Hub
HD Complete Clutch Kit with Hub, Pulley, Coil, and Dust Cover - Spring Leaf Hub
Regular price
$147.71
Regular price
Sale price
$147.71
Unit price
per
Couldn't load pickup availability
OEM part numbers
RE52508
RE52508
Item Information
Must Reuse Original Clutch Hardware
Can use Original Style Clutch with Rubber Hub - 600-3020
Specifications
| COMPRESSOR TYPE | 10PA17C |
| CLUTCH DIAMETER | 145mm, 5.708" |
| DIMENSION B | 29mm, 1.141" |
| GAUGE LINE (C) | N/A |
| COIL VOLTAGE | 12 |
| NUMBER OF GROOVES | 8 |
| GROOVE WIDTH | PV8 |
| COIL NUMBER | 610-340 |
| BEARING NUMBER | 440-948 |
Compatible With
John Deere Tractors5083E, 5101E, 5325, 5325N, 5410, 5420, 5420N, 5425, 5425N, 5510, 5510N, 5520, 5520N, 5525, 5525N, 5603, 5625, 5725, 7200, 7210, 7400, 7410, 7510, 7600, 7630, 7700, 7710, 7720, 7730, 7800, 7810, 7815, 7820, 7830, 7920, 7930, 8100, 8100T, 8110, 8110T, 8120, 8120T, 8130, 8130T, 8200, 8200T, 8210, 8210T, 8220, 8220T, 8225R, 8230, 8230T, 8245R, 8270R, 8295R, 8295RT, 8300, 8300T, 8310, 8310T, 8320, 8320R, 8320RT, 8320T, 8330, 8330T, 8345R, 8345RT, 8400, 8400T, 8410, 8410T, 8420, 8420T, 8430 MFWD, 8430T, 8520, 8520T, 8530, 8530T, 9100, 9120, 9200, 9220, 9230, 9300, 9300T, 9320, 9320T, 9330, 9400, 9400T, 9420, 9420T, 9430, 9430T, 9520, 9520T, 9530, 9530T, 9620, 9620T, 9630, 9630T
