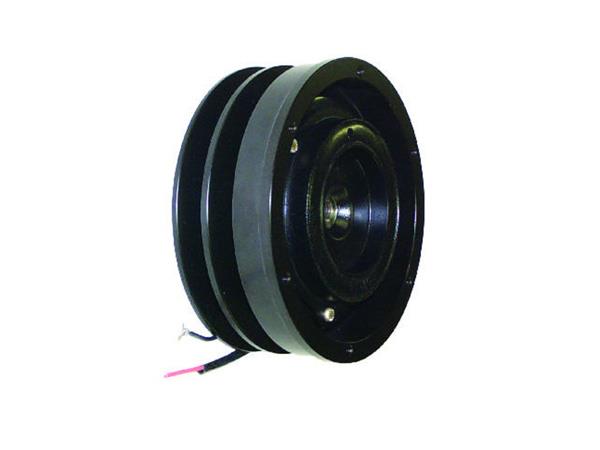

New Clutch With Coil - Nippondenso EARLY serial number
New Clutch With Coil - Nippondenso EARLY serial number
Regular price
$181.29
Regular price
Sale price
$181.29
Unit price
/
per
Couldn't load pickup availability
OEM part numbers
AZ48479
AZ48479
Item Information
To View Actual Item Just Click on the (Click Here For Larger Image) Under The Picture Box
Without Dust Cover
Without Dust Cover
Additional Information
Serial Number 507478 and Below
Serial Number 507478 and Below
Specifications
| CLUTCH DIAMETER | 135.5mm, 5.33" |
| DIMENSION B | 8.5mm, 0.334" |
| GAUGE LINE (C) | 25mm, 0.984" |
| COIL VOLTAGE | 12 |
| NUMBER OF GROOVES | 2 |
| GROOVE WIDTH | A2, .480" |
| COMPRESSOR TYPE | 10PA15C |
| COIL PART # | 610-300 |
| BEARING PART # | 440-948 |
Compatible With
John Deere Forage Harvester7200, 7300, 7400, 7500, 7700, 7800
John Deere Forage Harvester7200, 7300, 7400, 7500, 7700, 7800
