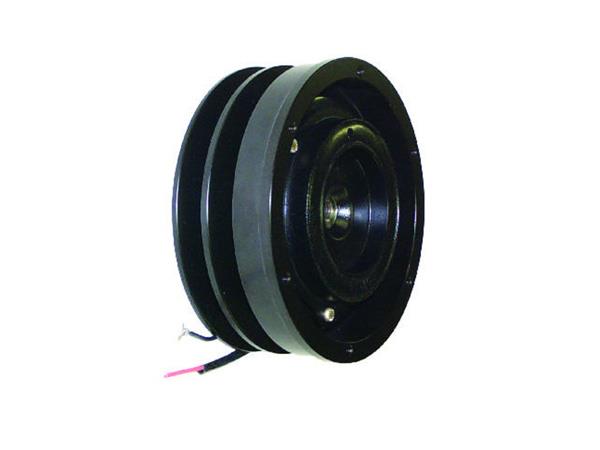

New Clutch With Coil - Nippondenso LATE serial number
New Clutch With Coil - Nippondenso LATE serial number
Regular price
$181.29
Regular price
Sale price
$181.29
Unit price
per
Couldn't load pickup availability
OEM part numbers
AZ48479
AZ48479
Item Information
To View Actual Item Just Click on the (Click Here For Larger Image) Under The Picture Box
Without Dust Cover
Without Dust Cover
Additional Information
Serial Number 500923 and Above With Original R134 System
Serial Number 500923 and Above With Original R134 System
Specifications
| CLUTCH DIAMETER | 135.5mm, 5.33" |
| DIMENSION B | 8.5mm, 0.334" |
| GAUGE LINE (C) | 25mm, 0.984" |
| COIL VOLTAGE | 12 |
| NUMBER OF GROOVES | 2 |
| GROOVE WIDTH | A2, .480" |
| COMPRESSOR TYPE | 10PA15C |
| COIL PART # | 610-300 |
| BEARING PART # | 440-948 |
Compatible With
John Deere Forage Harvester6610, 6710, 6810, 6910
John Deere Forage Harvester6610, 6710, 6810, 6910
