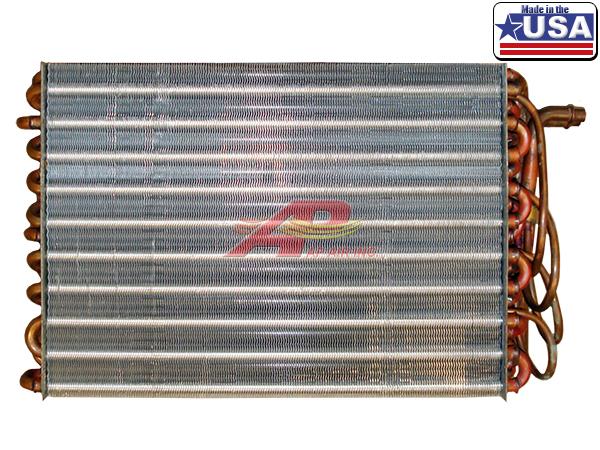

RE327083 - Evaporator - John Deere
RE327083 - Evaporator - John Deere
Regular price
$382.71
Regular price
Sale price
$382.71
Unit price
per
Couldn't load pickup availability
OEM part numbers
RE327083, RE292236
RE327083, RE292236
Item Information
Fits Later Serial Numbered Tractors with Automatic Temp Contol, For Bolt on Heater Core
Copper Tube and Fin, Evaporator Outlet at Top LH Side
Copper Tube and Fin, Evaporator Outlet at Top LH Side
Additional Information
Evaporator Outlet at Top LH Side
Evaporator Outlet at Top LH Side
Specifications
| VALVE TYPE | Block - Flange Mount |
| FITTING TYPE | O-Ring |
| CORE LENGTH | 13 1/2" |
| CORE HEIGHT | 10" |
| CORE WIDTH | 3 3/4" |
| OVERALL LENGTH | 18" |
| OVERALL HEIGHT | 10" |
| OVERALL WIDTH | 4 3/8" |
| FITTING INLET | #8, 1/2" O-Ring |
| FITTING OUTLET | #10, 5/8" O-Ring |
Compatible With
John Deere Tractors2204, 2204M, 7185J, 7195J, 7205J, 7210J, 7225J, 7630, 7730, 7830, 7930, 8130T, 8530T, 9230, 9330, 9430, 9430T, 9530, 9530T, 9630, 9630T
John Deere Tractors2204, 2204M, 7185J, 7195J, 7205J, 7210J, 7225J, 7630, 7730, 7830, 7930, 8130T, 8530T, 9230, 9330, 9430, 9430T, 9530, 9530T, 9630, 9630T
