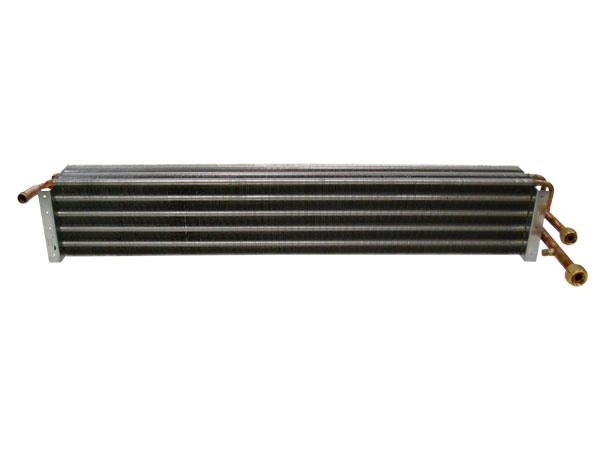

Evaporator With Heater Core
Evaporator With Heater Core
Regular price
$235.00
Regular price
Sale price
$235.00
Unit price
per
Couldn't load pickup availability
OEM part numbers
AR88076, RE52265, AR85245
AR88076, RE52265, AR85245
Item Information
Replacement Evaporator With Heater Core
Must Reuse Original Brackets
Must Reuse Original Brackets
Additional Information
Original Replacement Evaporator Replaces Early Models With Separate Heater Core, Tractors With Separate Heater Core Must Remove Roof Panel Spacer For Clearance
Original Replacement Evaporator Replaces Early Models With Separate Heater Core, Tractors With Separate Heater Core Must Remove Roof Panel Spacer For Clearance
Specifications
| VALVE TYPE | Bulb Type |
| FITTING TYPE | O-Ring |
| CORE LENGTH | 29" |
| CORE HEIGHT | 5" |
| CORE WIDTH | 3 1/8" |
| OVERALL LENGTH | 33 1/4" |
| OVERALL HEIGHT | 5" |
| OVERALL WIDTH | 12 1/2" |
| FITTING INLET | #8 Female O-Ring |
| FITTING OUTLET | #10 Female O-Ring |
Compatible With
John Deere Tractors4030, 4230, 4430, 4630, 8430 4WD, 8630
John Deere Tractors4030, 4230, 4430, 4630, 8430 4WD, 8630
