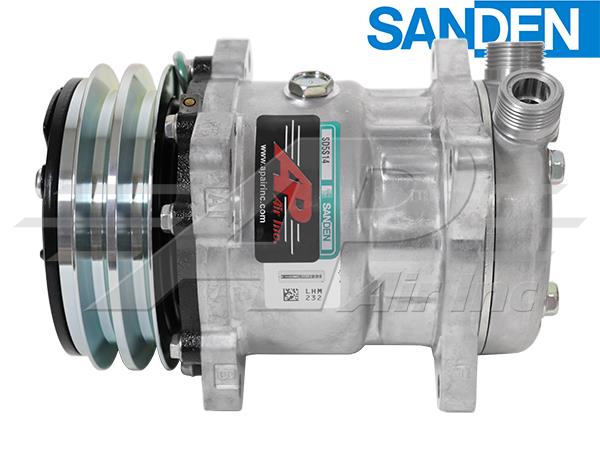

OE Sanden Compressor SD5H14 - 132mm 2 Groove Clutch 12V EARLY serial number
OE Sanden Compressor SD5H14 - 132mm 2 Groove Clutch 12V EARLY serial number
Regular price
$342.43
Regular price
Sale price
$342.43
Unit price
per
Couldn't load pickup availability
OEM part numbers
3405689R2, 3405689R1
3405689R2, 3405689R1
Item Information
Heavy Duty 5 Piston Design
3 1/4" Front to Rear Inside Ear Measurement Can use Alternative Compressor - 509-4273
3 1/4" Front to Rear Inside Ear Measurement Can use Alternative Compressor - 509-4273
Additional Information
Serial Number D002947 and Below Heavy Duty 5 Piston Design Can Use Aftermarket Sanden 509-4273
Serial Number D002947 and Below Heavy Duty 5 Piston Design Can Use Aftermarket Sanden 509-4273
Specifications
| COMPRESSOR TYPE | SD5H14HD |
| HEAD TYPE | C |
| OIL TYPE | R134 Pag Oil |
| CLUTCH DIAMETER | 132mm, 5.19" |
| VOLTAGE | 12 |
| GROOVES | 2 |
| BELT WIDTH | 1/2" |
| COIL POSITION | N/A |
| OIL QUANTITY | 207cc, 6.99oz. |
| GAUGE LINE | 39.55mm |
Compatible With
Case Tractors1056XL, 1255XL, 1455XL
Case Tractors1056XL, 1255XL, 1455XL
