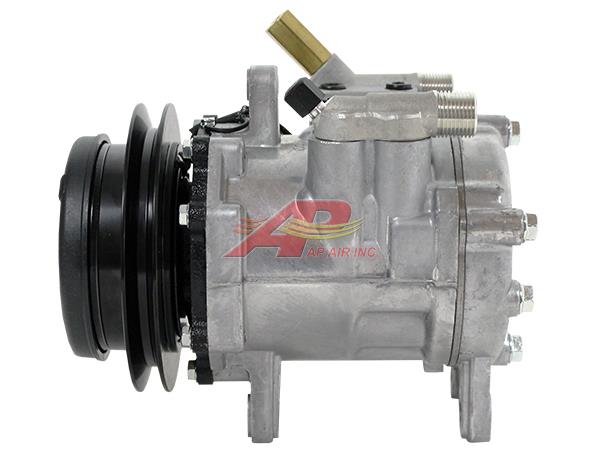

HD Sanden Style Denso - 146mm, 1 Groove Clutch, 12V - With Manifold Kit
HD Sanden Style Denso - 146mm, 1 Groove Clutch, 12V - With Manifold Kit
Regular price
$396.14
Regular price
Sale price
$396.14
Unit price
per
Couldn't load pickup availability
Item Information
Includes Compressor and High & Low Side Manifolds
Sanden Style Version of Original 6E171 Denso
Sanden Style Version of Original 6E171 Denso
Additional Information
Can use Denso Compressor without Manifold Kit - 503-116 Can use Sanden Style without Manifold Kit - 503-117
Can use Denso Compressor without Manifold Kit - 503-116 Can use Sanden Style without Manifold Kit - 503-117
Specifications
| COMPRESSOR TYPE | 7H15 |
| OIL TYPE | Assembly Oil |
| CLUTCH DIAMETER | 146mm, 5.76" |
| VOLTAGE | 12 |
| GROOVES | 1 |
| BELT WIDTH | .50, 1/2" |
| COIL POSITION | 12 o'clock |
| OIL QUANTITY | 6.5 oz |
| GAUGE LINE | 47.5mm, 1.86" |
Compatible With
John Deere Forage Combine1085, 1085HY/4, 1155, 1157, 1158, 1166HY/4, 1169, 1169HY/4, 1174, 1174H, 1177, 1177H, 1188, 1188H, 4420, 4425, 4435, 6622, 7720, 7722, 9500, 9500SH, 9600, CTS
John Deere Forage Combine1085, 1085HY/4, 1155, 1157, 1158, 1166HY/4, 1169, 1169HY/4, 1174, 1174H, 1177, 1177H, 1188, 1188H, 4420, 4425, 4435, 6622, 7720, 7722, 9500, 9500SH, 9600, CTS
