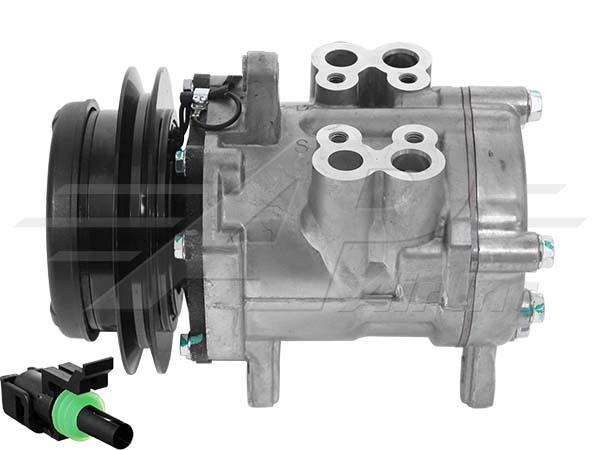

HD Sanden Style Denso - 146mm, 1 Groove Clutch, 12V - Without Manifold Kit LATE serial number
HD Sanden Style Denso - 146mm, 1 Groove Clutch, 12V - Without Manifold Kit LATE serial number
Regular price
$349.14
Regular price
Sale price
$349.14
Unit price
per
Couldn't load pickup availability
Item Information
Sanden Style Version of Original 6E171 Denso
Can Re-use Original Manifolds. For Manifold Replacement Kit, Order - 451-1173K
Can use HD Alternative Denso Compressor - 503-1163
Can use OE Style Denso Compressor - 503-116 Will Not Fit John Deere Models 2250, 2450, 2650, 2650N, 2850, 2355,
2555, 2755, 2855N, 2955, 3050, 3350, 3650, 3055, 3155, 3255 With John Deere AL63652 Compressor Mounting Bracket
Can use OE Style Denso Compressor - 503-116 Will Not Fit John Deere Models 2250, 2450, 2650, 2650N, 2850, 2355,
2555, 2755, 2855N, 2955, 3050, 3350, 3650, 3055, 3155, 3255 With John Deere AL63652 Compressor Mounting Bracket
Additional Information
Serial Number 600001 and Above
Serial Number 600001 and Above
Specifications
| COMPRESSOR TYPE | 7H15 |
| OIL TYPE | Assembly Oil |
| CLUTCH DIAMETER | 5.76" |
| VOLTAGE | 12 |
| GROOVES | 1 |
| BELT WIDTH | .50, 1/2" |
| COIL POSITION | 12 o'clock |
| OIL QUANTITY | 6.5 oz. |
| GAUGE LINE | 47.5mm, 1.86" |
Compatible With
John Deere Forage Combine6620, 6622, 7720, 7722
John Deere Forage Combine6620, 6622, 7720, 7722
