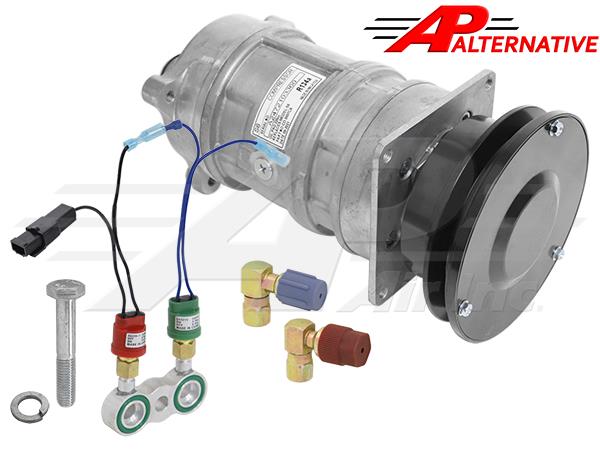

Heavy Duty A6 Compressor with Hi & Lo Pressure Update Kit
Heavy Duty A6 Compressor with Hi & Lo Pressure Update Kit
Regular price
$503.57
Regular price
Sale price
$503.57
Unit price
per
Couldn't load pickup availability
OEM part numbers
SE501456, SE501457, TY6665, TY6770
SE501456, SE501457, TY6665, TY6770
Item Information
Replaces A6 with 10PA20 - 10 Cylinder Denso, Includes Hi & Lo Pressure Update Kit and Dust Protection
Uses Original Belt & Hoses - Can be used for 10 and 2 O'Clock Coil Positions
Uses Original Belt & Hoses - Can be used for 10 and 2 O'Clock Coil Positions
Additional Information
Uses Original Hoses, For Optional Roof Mounted Low Pressure Switch Kit - Must Order 220-043 Wire Harness
Uses Original Hoses, For Optional Roof Mounted Low Pressure Switch Kit - Must Order 220-043 Wire Harness
Specifications
| COMPRESSOR TYPE | 10PA20HD |
| HEAD TYPE | Hi and Lo |
| OIL TYPE | Pag 46 |
| CLUTCH DIAMETER | 5.58" |
| VOLTAGE | 12 |
| GROOVES | 1 |
| BELT WIDTH | 1/2" |
| MOUNTING HOLES | Metric Thread |
| OIL QUANTITY | 7 oz. |
Compatible With
John Deere Forage Combine1055, 1065, 1072, 1075, 1075H, 1075HY/4, 1085, 1085H, 1085HY/4, 3300, 4420, 484, 6600, 6622, 7700, 7720, 7722, 955, 956, 975, 975HY/4, 985, 985HY/4
John Deere Forage Combine1055, 1065, 1072, 1075, 1075H, 1075HY/4, 1085, 1085H, 1085HY/4, 3300, 4420, 484, 6600, 6622, 7700, 7720, 7722, 955, 956, 975, 975HY/4, 985, 985HY/4
