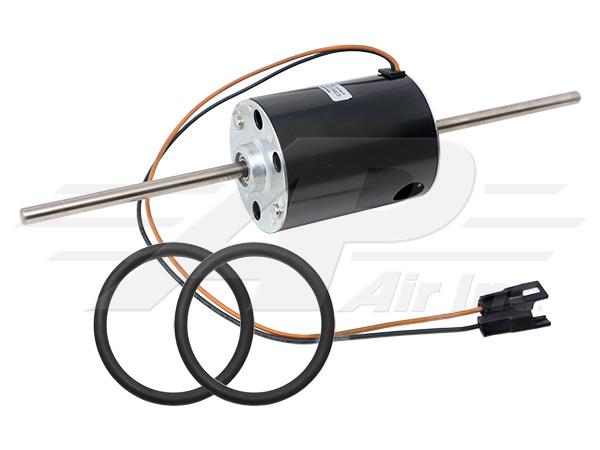

Heavy Duty Motor - HD Bearing Style with OE Wire Connectors and Mounting O-Rings
Heavy Duty Motor - HD Bearing Style with OE Wire Connectors and Mounting O-Rings
Regular price
$100.71
Regular price
Sale price
$100.71
Unit price
per
Couldn't load pickup availability
OEM part numbers
AR82005, RE25160, RE251028
AR82005, RE25160, RE251028
Item Information
With OE Wire Connectors and Mounting O-Rings
Replaces Bushing Style Motor With New HD Bearing Style Motor Can Use Standard Version - BM20052
Replaces Bushing Style Motor With New HD Bearing Style Motor Can Use Standard Version - BM20052
Additional Information
3/8" Double Shaft 2 Wire Motor
3/8" Double Shaft 2 Wire Motor
Specifications
| TYPE | Double Shaft, Single Speed |
| SHAFT SIZE | 3/8" |
| SHAFT LENGTH | 5" |
| MOTOR DIAMETER | 3 1/4" |
| MOTOR LENGTH | 4 1/8" |
| OVERALL LENGTH | 14 3/4" |
| ROTATION | Reversible |
| NUMBER OF WIRES | 2 |
| VOLTAGE | 12 |
| STUD SPAN | 2 1/2" |
Compatible With
John Deere Tractors4050, 4055, 4250, 4255, 4450, 4455, 4555, 4560, 4650, 4755, 4760, 4850, 4955, 4960, 8450, 8650, 8850
John Deere Tractors4050, 4055, 4250, 4255, 4450, 4455, 4555, 4560, 4650, 4755, 4760, 4850, 4955, 4960, 8450, 8650, 8850
