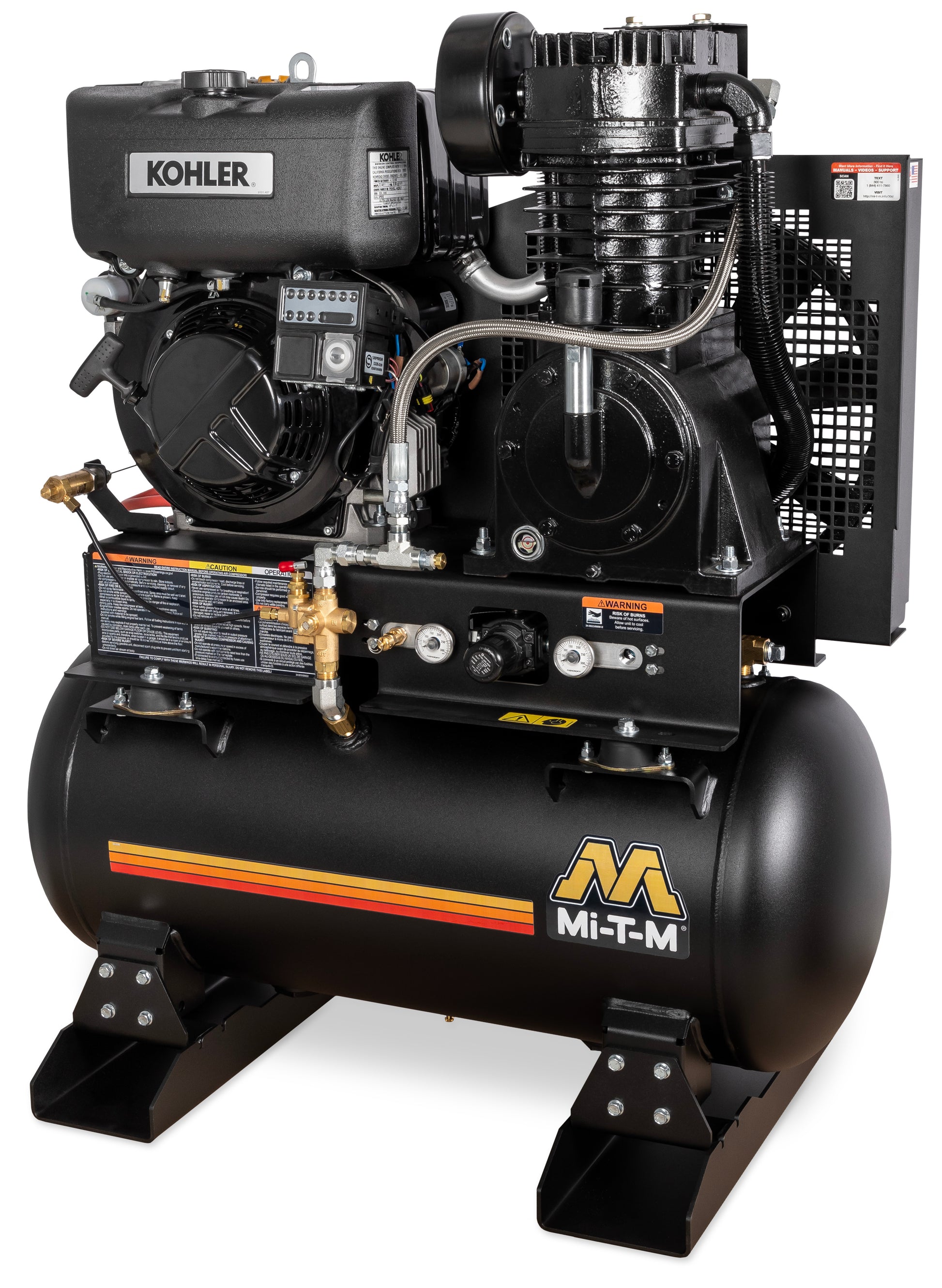

Mi-T-M ABS-9KD-30H 30 Gallon Two Stage Diesel Air Compressor

Mi-T-M 30 Gallon Two Stage Diesel Air Compressor - ABS-9KD-30H

The Mi-T-M ABS-9KD-30H 30 Gallon Two Stage Diesel Air Compressor is built for dependable compressed air performance in demanding industrial, automotive, and service truck applications. Designed for professionals who need rugged construction and reliable air power, this 30 gallon diesel air compressor features a cast iron two-stage compressor pump, 9.1 HP Kohler KD440 OHV diesel engine, and a durable powder-coated ASME receiver tank.

Built for consistent performance in the shop or in the field, this Mi-T-M industrial air compressor delivers 29.0 CFM at 175 PSI and includes an electric start engine with glow plug for easier cold-weather starting. With its rugged frame, stainless-steel braided discharge hose, dual gauges, and heavy-duty construction, this compressor is an excellent choice for professional users who need long-lasting durability and dependable air delivery.

Mi-T-M ABS-9KD-30H Features

• Model: ABS-9KD-30H
• 30 gallon industrial air compressor
• Two-stage cast iron compressor pump
• 29.0 CFM at 175 PSI
• 9.1 HP Kohler KD440 OHV diesel engine
• Electric start (battery, box, and cables not included unless added separately)
• Glow plug for easier cold-temperature starting
• Splash lubricated pump
• Stainless-steel braided discharge hose
• Large canister intake filter
• Oil level sight indicator
• Powder-coated ASME receiver tank
• 3/16-inch base plate helps reduce vibration
• Powder-coated two-piece belt guard
• Removable base plate for flexible installation
• Regulator and dual gauges for tank and outlet pressure
• ASME safety valves
• Tank drain valve
• 1/2-inch port
• Start/stop control set at 145 to 175 PSI
• Cable throttle engine idle control
• ASME Boiler and Pressure Vessel Code - UM Certified
• 3-year engine warranty
• Made in USA with globally sourced components

Specifications

• Model Number: ABS-9KD-30H
• Tank Size: 30 Gallon
• CFM @ PSI: 29.0 @ 175 PSI
• Engine: 9.1 HP Kohler KD440 OHV
• Engine Idle Control: Cable throttle
• Dimensions (L x W x H): 38 x 23 x 46.5 in.
• Ship Weight: 540 lb.
• Net Weight: 483 lb.

Equipped with 150-PSI maximum rated regulator.

Built for Industrial and Service Applications

This Mi-T-M two stage diesel air compressor is known for consistent and reliable air power, making it ideal for industrial shops, automotive service, body shops, fleet maintenance, and mobile service truck applications. Its two-stage pump design and diesel-powered Kohler engine provide the durability and output needed for demanding professional use.

Why Choose the Mi-T-M ABS-9KD-30H?

If you need a 30 gallon diesel air compressor with electric start that is built for real-world work, the ABS-9KD-30H offers the features professionals look for: strong air delivery, rugged pump construction, ASME-certified tank, heavy-duty frame, and reliable Kohler diesel power. It is designed for users who need dependable performance and long service life in tough environments.

Common Applications

• Industrial shops
• Automotive repair facilities
• Service trucks and service body installations
• Fleet maintenance
• Body shop applications
• Field service operations

Available Accessory

• AW-6000-1002: Equipment cover - keeps your equipment clean, dry, and looking like new

Available Options

• AX-0079: Battery box, cables and tray - attaches to engine side of unit
• IX-0001: Vibration isolator pads - recommended for models mounted in service truck applications to help protect the unit from vibration during use

Important Information

• Battery, box, and cables are not included unless purchased separately.
• Options must be ordered with the unit and cannot be added later.
• This product may include a California Proposition 65 warning.
